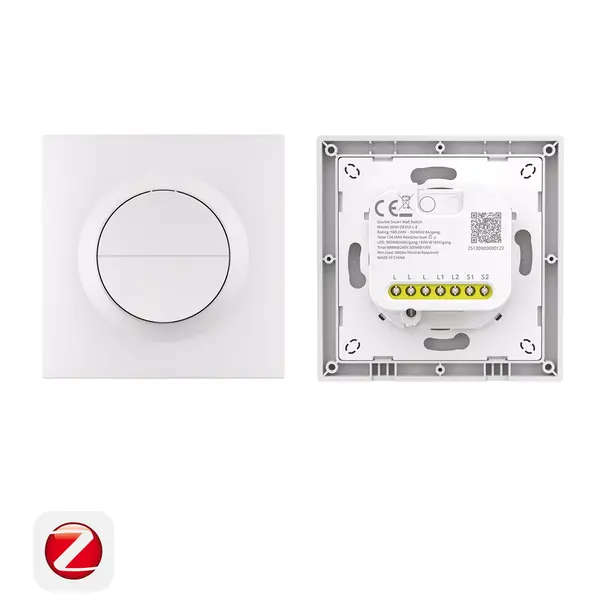

SONOFF Orb-ZBW2L Zigbee Double Smart Wall Switch | MINI-ZB2GS-L-E
【No Neutral Wire Required, Easy Installation】Designed for homes without a neutral wire, no bypass needed on the load. Simple retrofit saves time, effort, and installation costs.
【Flexible Dual-Channel Control】Innovative dual-channel design supports up to 12A total load, with 8A per channel, enabling flexible current allocation for lights.

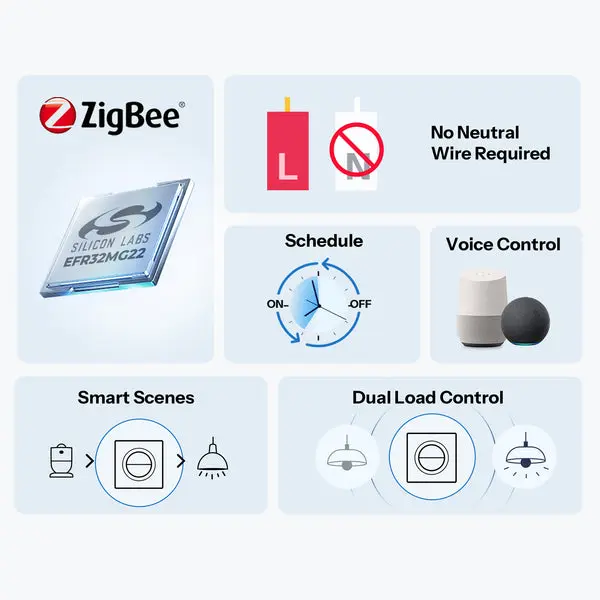

【Zigbee 3.0 Reliable Connectivity】Built on the global Zigbee 3.0 standard, ensuring seamless integration with mainstream Zigbee ecosystems, stable connections, and low power consumption.
【Enhanced Smart Experience】Supports Zigbee Simple Setup (ZSS) and Zigbee Binding for one-tap pairing and automatic device syncing. Devices remain locally linked even if the network or hub goes offline.
【Safe, Reliable, And Durable】 Features a flame-retardant housing with surge and overload protection, plus a 100,000-cycle long-life relay for durable, stable, and continuous operation.

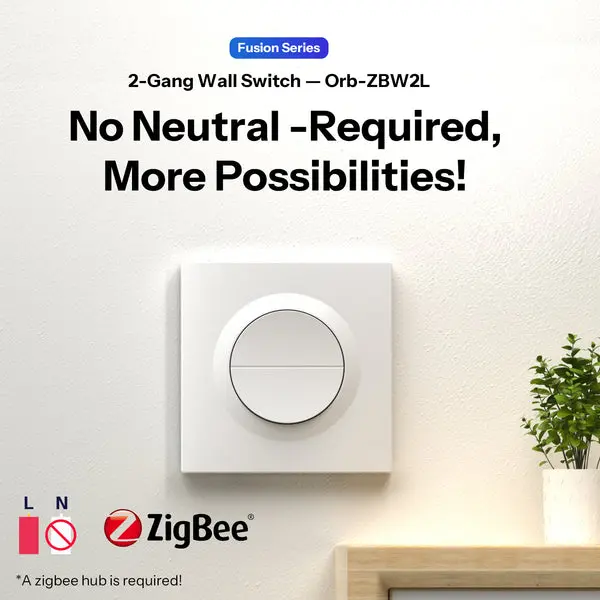

2-Gang Wall Switch — Orb-ZBW2L
No Neutral Required,
More Possibilities!

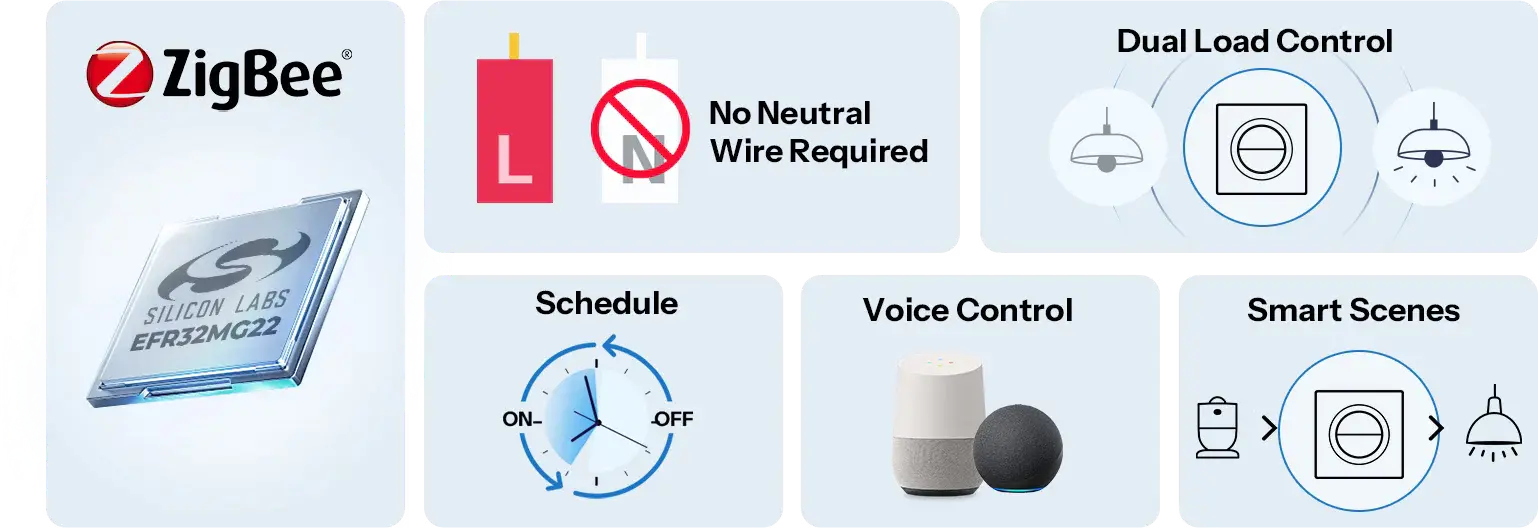

Fusion Series Overview
2-Gang Wall Switch — Orb-ZBW2L
Engineered for Safety and Reliability
Delivering unwavering safety and stability for your smart home, day in and day out.
A Time-Saving and Labor-Saving Choice
3W load smart control, easy to nail – no extra anti-flicker module needed.
Dual Load Control
Control dual loads and simplify your space.
Set Timers
Turn on/off your appliances automatically.
Smart Scene
Make your life smarter and simpler
with smart scenes.
Voice Control
Free your hands and control devices with one command.
Never Worry About Smart Lights Going Offline
With the detach relay enabled, smart lights won't lose power when the wall switch is turned off, allowing them to remain smart at all times.

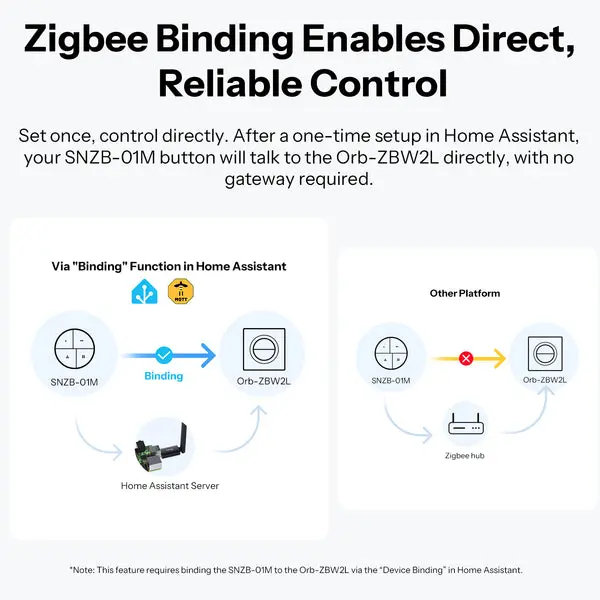

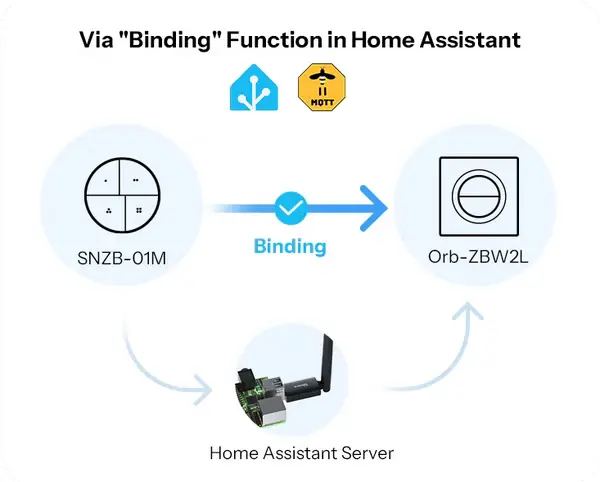

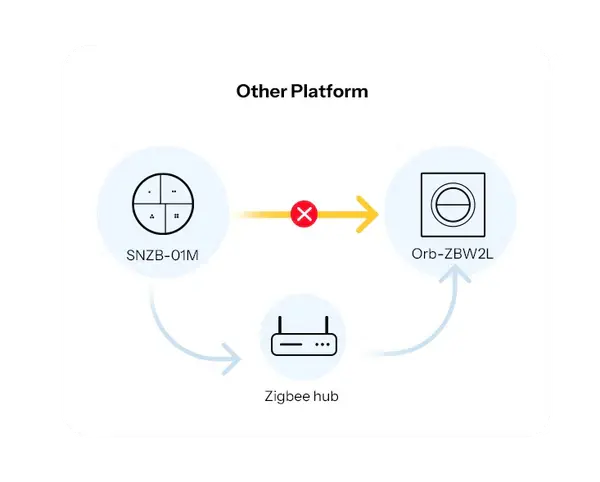

Zigbee Binding Enables Direct, Reliable Control
Set once, control directly. After a one-time setup in Home Assistant, your SNZB-01M button will talk to the Orb-ZBW2L directly, with no gateway required.

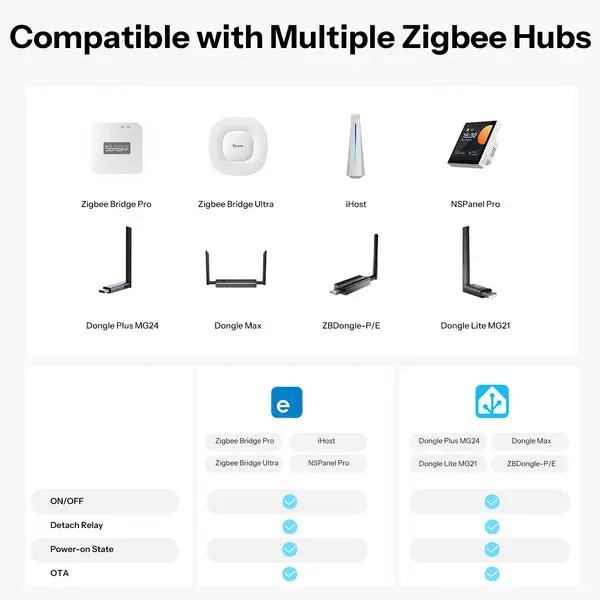

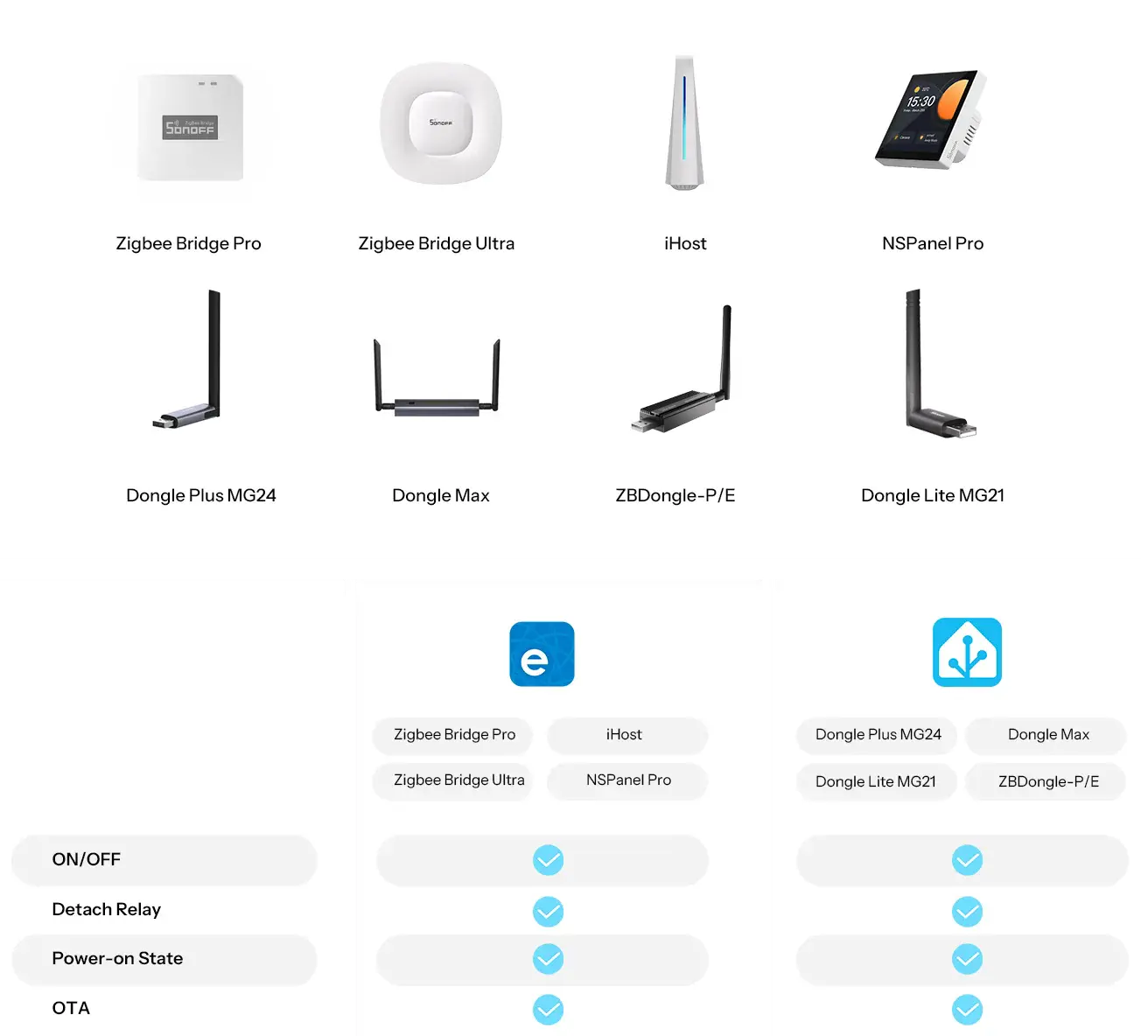

Compatible with Multiple Zigbee Hubs
Integration with
Third-party Platforms
Based on the Zigbee 3.0 standard protocol, it seamlessly integrates with third-party open-source platforms, making it perfect for your home automation needs.

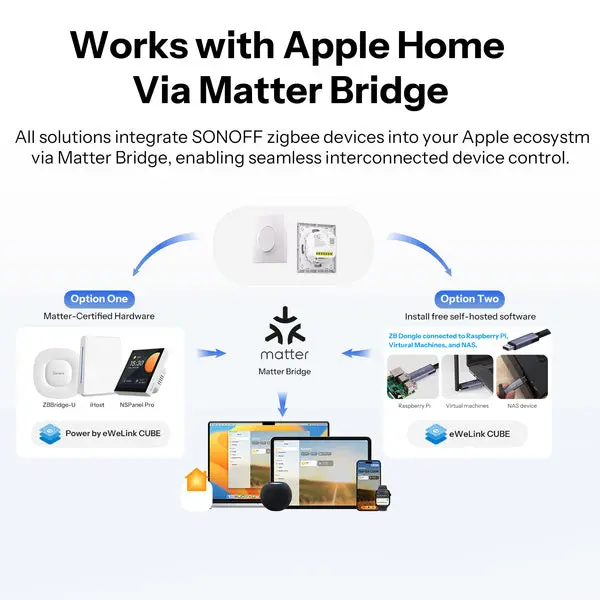

Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF zigbee devices into your Apple ecosystem via Matter Bridge, enabling seamless interconnected device control.
NOTE：Click ZBBridge-U Learn More | Click eWeLink CUBE Learn More

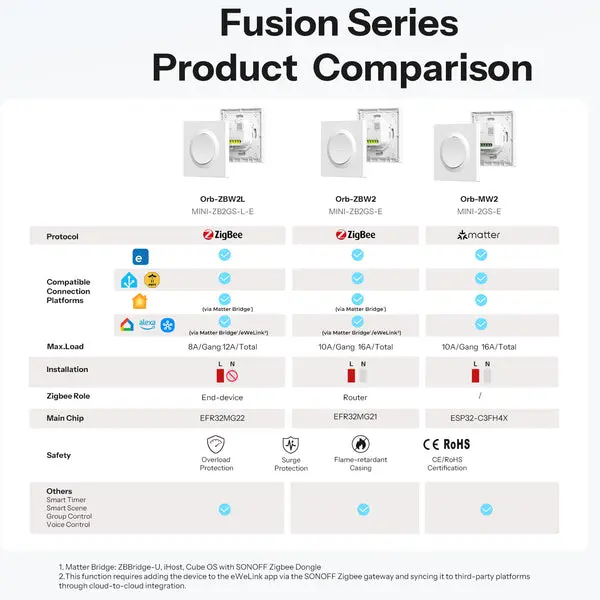

Fusion Series Product Comparison
*Note1. Matter Bridge: ZBBridge-U, iHost, Cube OS with SONOFF Zigbee Dongle.
*Note2.This function requires adding the device to the eWeLink app via the SONOFF Zigbee gateway and syncing it to third-party platforms through cloud-to-cloud integration.

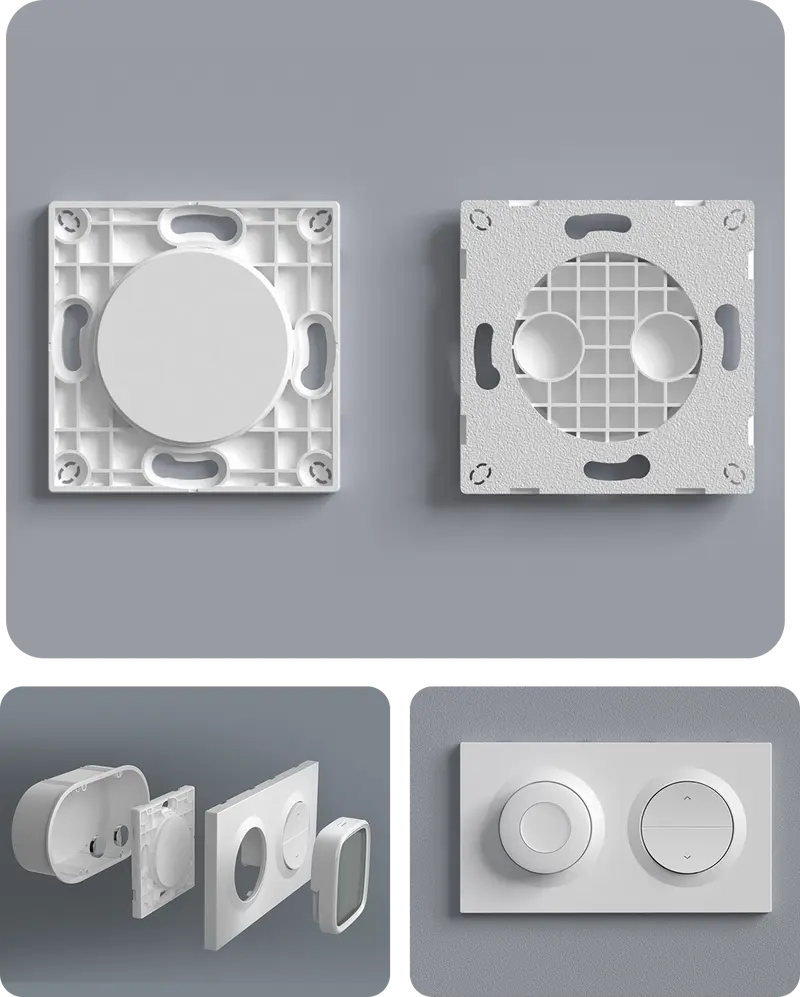

Use Extension
Use 3D-printed SONOFF sensor accessories to upgrade your wall switch into a smart control center.
Tap to get the accessory's 3D models >
Pair With SONOFF SNZB-01P
*The magnet is required when used with certain sensors.

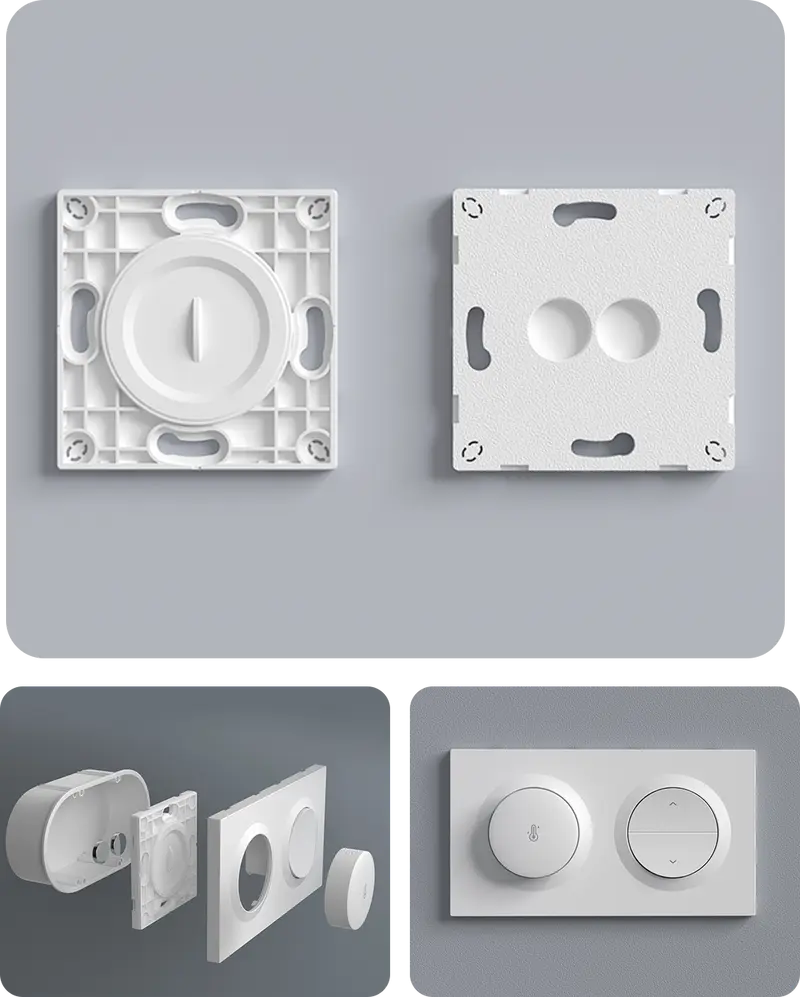

Pair With SONOFF SNZB-02P
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02D
*The magnet is required when used with certain sensors.

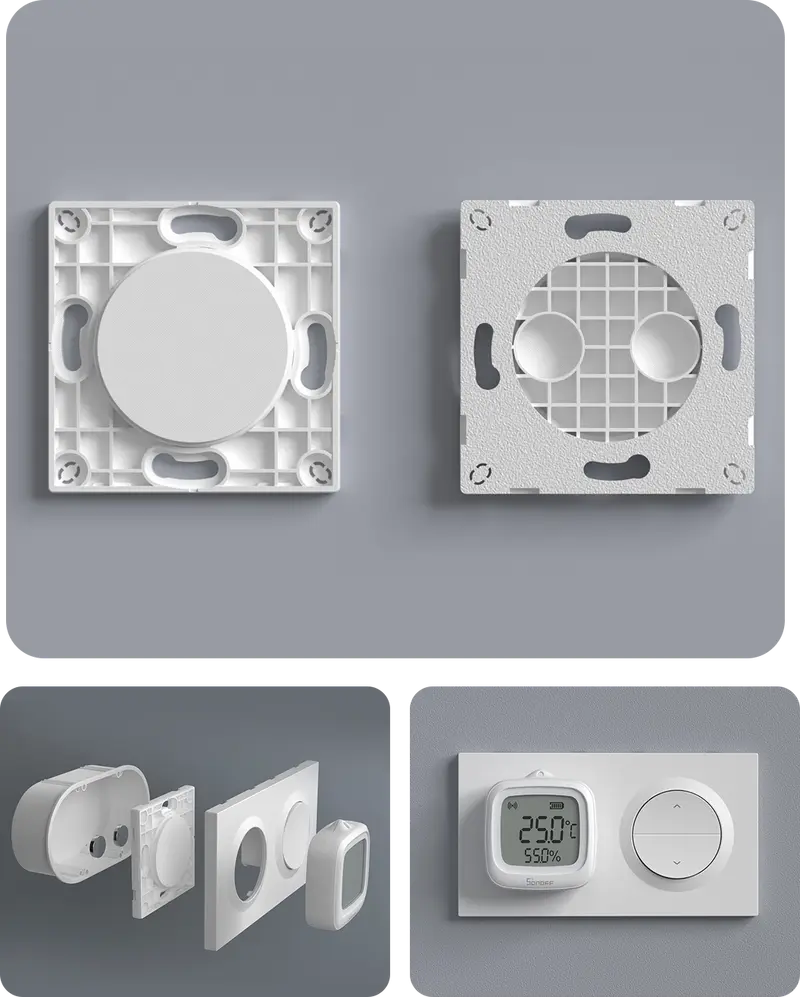

Pair With SONOFF SNZB-02WD
*The magnet is required when used with certain sensors.

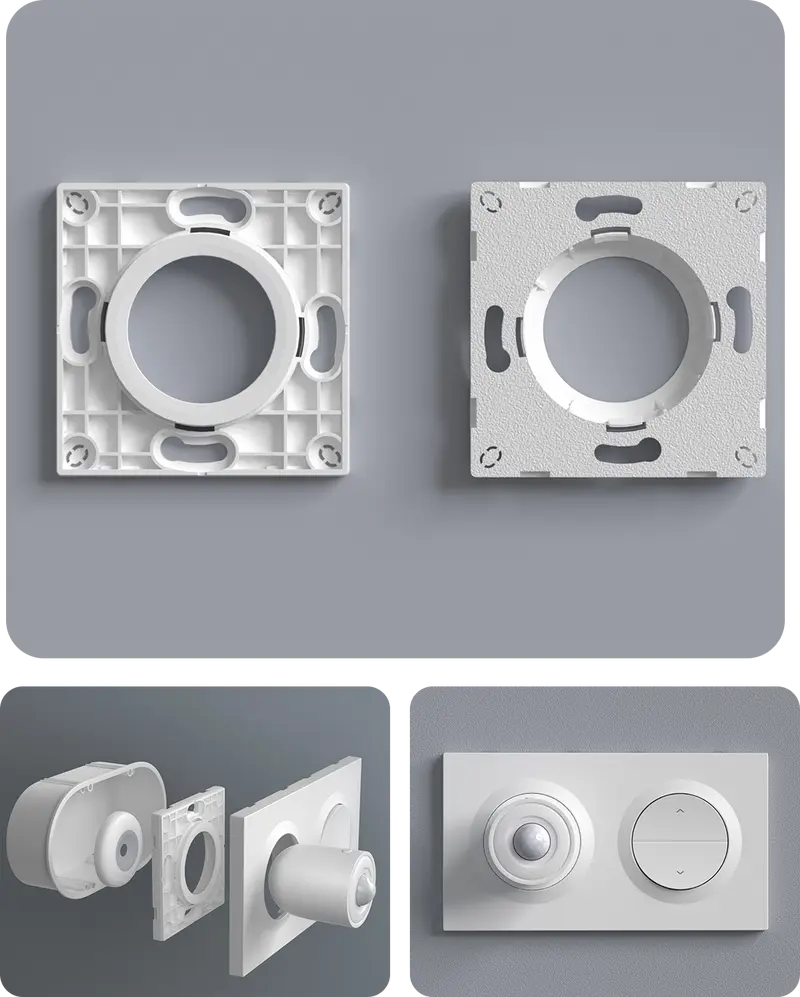

Pair With SONOFF SNZB-03P
*The magnet is required when used with certain sensors.
Use open-source 3D-printed accessories
to pair with sockets from other brands.

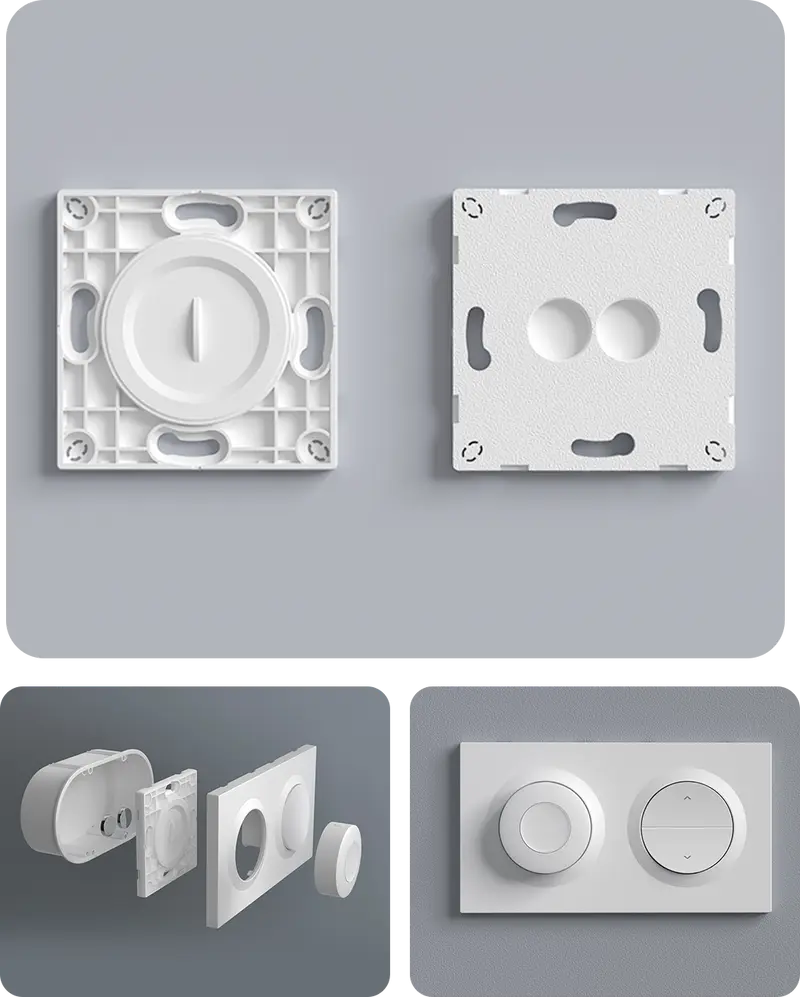

Applicable Mounting Box

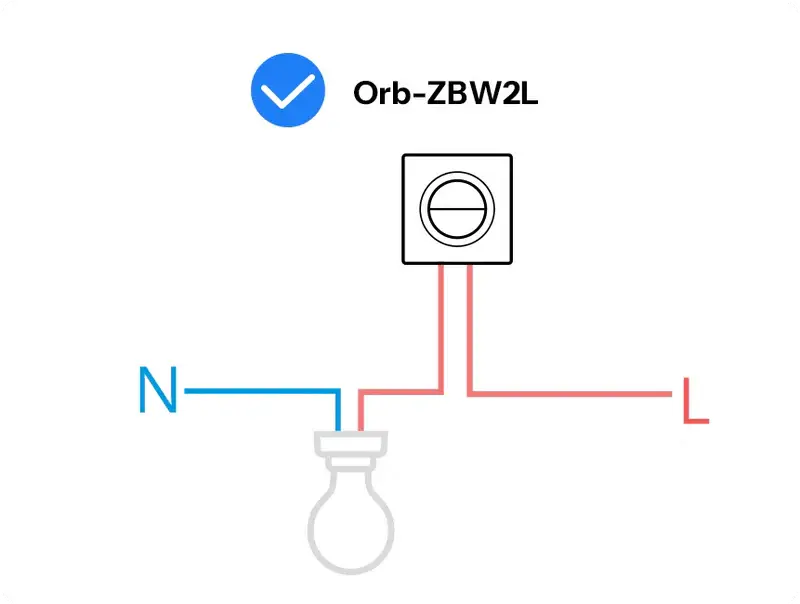

Wiring Instructions

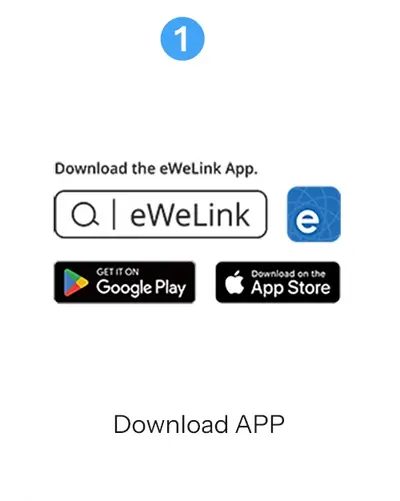

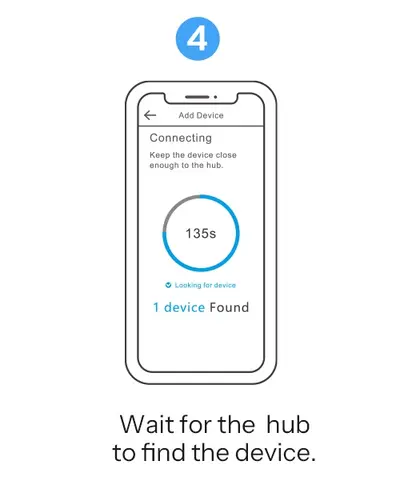

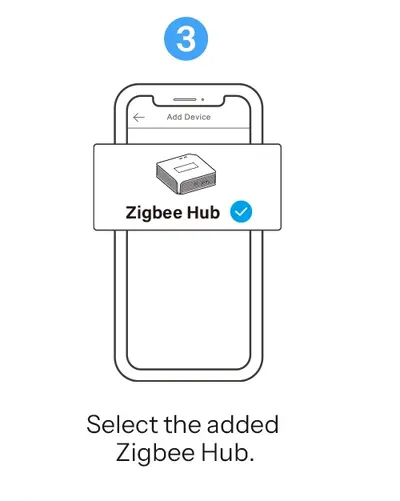

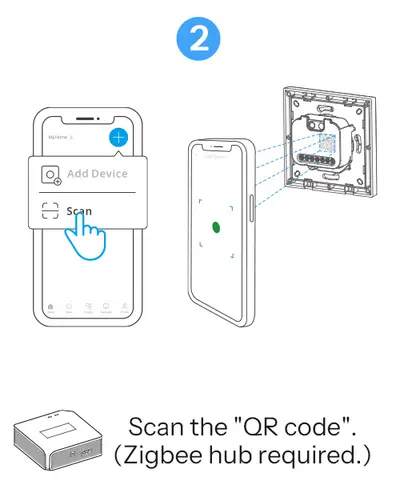

4 Steps to Use
Easily set up. Download the APP, scan the QR code to connect with the zigbee hub and control!

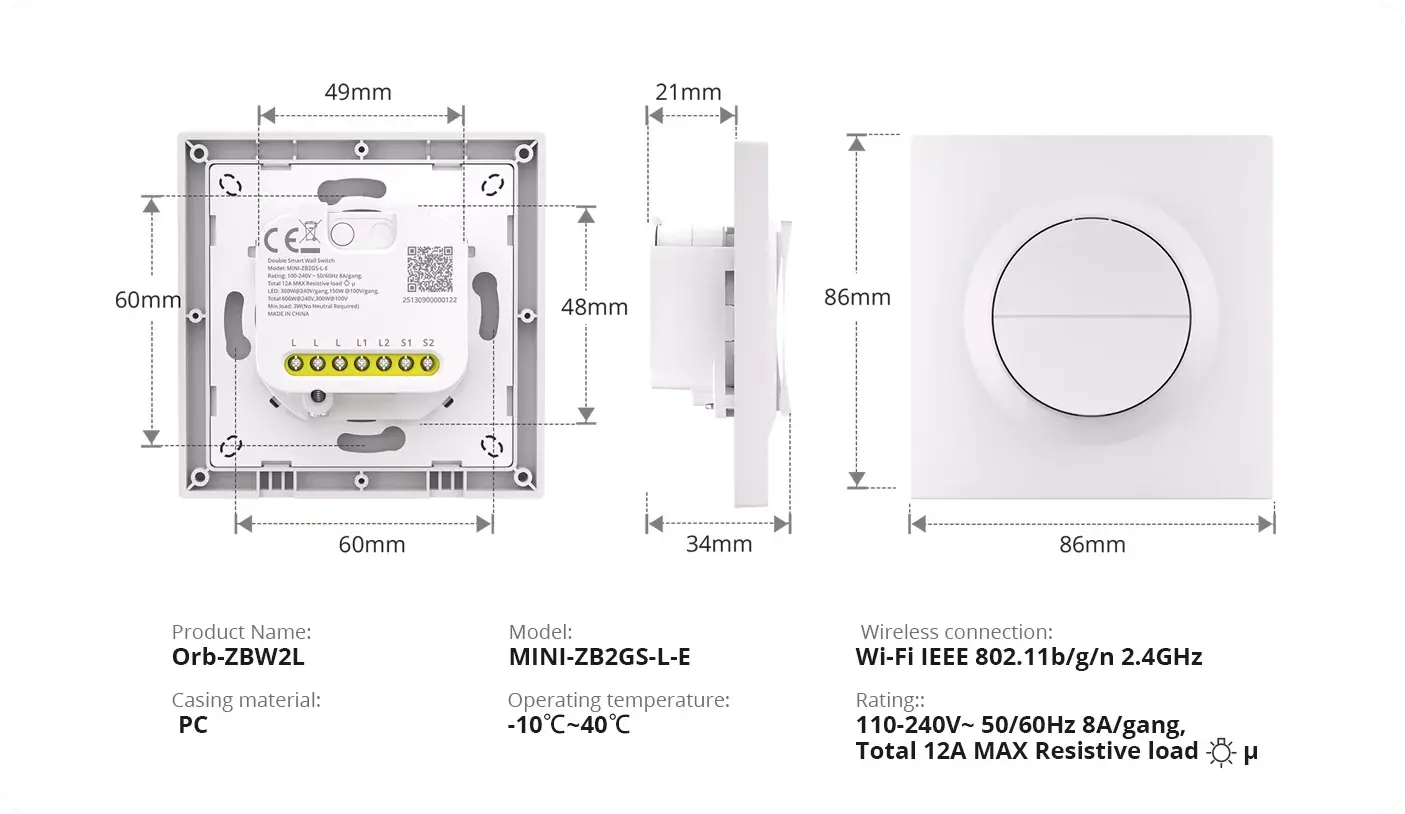

Specification
Specification
Orb-ZBW2L is a smart wall switch designed for easy installation in homes without a neutral wire, requiring no bypass on the load and minimizing retrofit complexity. Built on the Zigbee 3.0 protocol, it ensures stable, low-power connectivity and broad compatibility with mainstream Zigbee ecosystems. Its flexible dual-channel design supports up to 12A total load, with up to 8A per channel. With Zigbee Simple Setup and Zigbee Binding, Orb-ZBW2L enables fast pairing and reliable local control.
| Product Name | Orb-ZBW2L |
| Product Series | Fusion Series |
| Model | MINI-ZB2GS-L-E |
| MCU | EFR32MG22 |
| Rated Specifications | 110–240V~ 50/60Hz, 8A per gang, Total 12A Max (Resistive Load) |
| LED Load Rating | 300W @ 240V per gang, 150W @ 100V per gang; Total 600W @ 240V, 300W @ 100V |
| Product Dimension | 86 × 86 × 33.7 mm |
| Working Temperature | -10℃ to 40℃ |
| Casing Material | PC |
| Certification | CE / RoHS |
FAQ
Yes. Orb-ZBW2L is designed to work without a neutral wire, making it ideal for retrofit installations in most standard wall mounting boxes.
Orb-ZBW2L is compatible with the following load types:
Incandescent lamps
LED lamps
Halogen lamps (excluding MLV low-voltage halogen)
Compact fluorescent lamps (CFL)
It supports dual-channel control with a total maximum load of 12A (combined for two loads).
No. Orb-ZBW2L does not support external flash suppression modules. Connecting one may damage the device.
"Binding" is a technology that enables two or more Zigbee devices to establish direct communication, allowing interaction without requiring a gateway as an intermediary. The Binding feature must be configured within Home Assistant.
No. Orb-ZBW2L is designed as a Zigbee end device, not a router. To minimize power consumption and prevent light flickering, it uses a low-power design and does not relay Zigbee signals to other devices.
